New Homes Above New Utilities: Coordinating Construction Survey Control Underground
A new subdivision gets built twice. The first construction happens underground, where trunk sewers, water mains, storm systems and dry utilities go beneath streets that do not exist yet. The second happens on top, when the homes rise over everything the first phase is buried. Survey control is the thread connecting the two, and coordinating that control from the first trench to the last foundation determines whether the neighborhood fits together or fights itself.
Beginning With One Shared Horizontal and Vertical Framework
Subdivision plans arrive as a stack. Roadway drawings, lot layouts, utility profiles and building plans each describe part of the same ground, and each was drafted with its own conveniences in mind. Before any contractor stakes anything, all of them have to answer to one framework.
The surveyor establishes that framework first. Horizontal control gets set and verified across the site, vertical control gets tied to confirmed benchmarks and every plan set gets checked against the same coordinates and datum. Discrepancies surface now, while they cost a phone call.
A utility profile drawn to a different benchmark than the road plans, or a lot layout rotated slightly against the boundary, gets caught on paper instead of in the ground. From that point forward, every contractor on the site stakes from the same verified source, and the underground work and the surface work stop being separate projects.
Placing Deep Utility Lines in the Correct Sequence
Underground construction obeys gravity and order. The deepest lines go in first, because trenching under an installed pipe later is expensive and risky, and the sequence runs from trunk systems outward to the smallest services.
The layout has to serve that sequence precisely. Trunk sewers get staked for line and grade with tight vertical control, since a gravity main has no pump to forgive a flat spot. Manholes and structures get positioned so the connecting runs meet them at the designed inverts. Service laterals get staked to reach lots that exist only as corner stakes, and every stub has to land where a future foundation can actually use it.
Crossings between systems get planned vertically before either pipe arrives. The surveyor providing this layout is effectively building the neighborhood’s skeleton in advance, and the homes will conform to it whether it went in right or wrong.
Checking Separation at Congested Crossings
Under a subdivision street, space runs out fast. Water, sanitary sewer, storm drain, gas, power and communications all want the same corridor, and health rules and utility standards each demand minimum distances between them. The crossings are where the demands collide.
Field verification keeps the collisions on paper. At each congested crossing, the surveyor checks the installed or staked positions against the required horizontal and vertical clearances, catching the spot where a storm line as designed would pinch the water main’s separation. Finding it before the second pipe goes in means a small profile adjustment.
Finding it after means excavating finished work, re-laying pipe and explaining the delay. Deep systems compound the stakes, since a conflict three feet down is an afternoon and the same conflict twelve feet down is a week. Minutes of checking buy the difference.

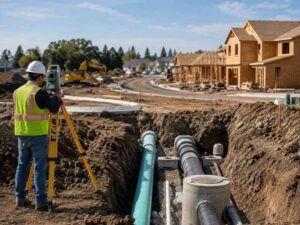

Capturing Installed Positions Before Trenches Are Closed
An open trench is a brief window of perfect information. Every pipe, fitting, stub and structure sits visible and measurable, and the moment the backfill goes in, that certainty is gone for the life of the neighborhood.
Surveyors work the window deliberately. Coordinates get collected on the installed lines, rim and invert elevations get measured on every structure, pipe sizes and materials get recorded and service stub locations get tied so each one can be found again from the surface.
The measurements go into the record while the ground is still open, because the alternative is reconstruction by folklore. A service line located from memory two years later is a guess, and guesses under driveways get expensive. The as-built record built trench by trench becomes the single honest map of what the subdivision buried.
Transferring Reliable Records to the Homebuilding Phase
The handoff is where coordination pays off. Homebuilders arriving months or years after the utility phase inherit a site where everything that matters is invisible, and the survey record is their only sight underground.
Verified utility information now drives the vertical decisions on every lot. Foundation elevations get set against known service invert depths, so gravity connections actually work. Lot grading plans respect the cover over shallow lines, and excavators dig with confidence near mains because the record shows where the mains actually are rather than where the design once put them.
Water and sewer connections land on their stubs instead of hunting for them, inspections verify against documented positions and the future homeowner’s repairs, fences and pools all benefit from records nobody thought about at closing. A subdivision built on one continuous thread of control, from the first benchmark through the last as-built shot, works the way the plans promised. The neighborhoods that skipped the thread find out underground.
