Retaining-Wall Monitoring Surveys for Detecting Movement During Nearby Construction
A retaining-wall monitoring survey tracks whether a wall shifts while construction happens close by. When crews dig, dewater, or load the ground near an existing wall, small movements can start before anyone sees a crack. The survey measures the wall’s position on a schedule and compares each reading against a baseline to catch motion early. That early warning gives the project team time to act before a lean becomes a failure.
Recording a Baseline Before the Digging Starts
The whole program rests on a solid baseline taken before any disturbance begins. The crew records the wall’s current position, its key elevations, its visible condition, and the reference features around it. That first set of measurements becomes the yardstick every later reading gets compared to. Without a clean baseline, there’s no honest way to say whether the wall has moved at all.
Timing the baseline matters as much as taking it. If the crew waits until excavation is already underway, the wall may have shifted before the first reading captured its true starting point. So the baseline goes in while the site is still quiet and stable. That discipline gives the entire monitoring effort a trustworthy zero point to measure from, which is the difference between real data and guesswork.
Choosing Monitoring Points That Stay Put

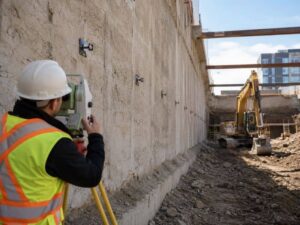

The survey depends on targets the crew can trust reading after reading. The team places monitoring points where they’re durable, visible, and reachable, and where construction won’t knock them loose. Just as important, the reference points that anchor the whole system have to sit outside the zone where the ground might move. A reference that shifts along with the wall would hide the very motion the survey is meant to catch.
Placement takes real judgment on a busy site. A target stuck in a spot that gets buried, bumped, or paved over becomes useless halfway through the job. So the crew picks locations that survive the work and still give a clear line of sight for each reading. Good target placement quietly determines whether the data holds together over weeks of active construction.
Timing Readings Around the Riskiest Work
Not every day carries the same risk, so the reading schedule follows the work. Excavation stages, dewatering, heavy loading, shoring changes, and even heavy rain can each push a wall, and those events call for closer watching. The crew schedules extra readings around the moments most likely to cause movement. That way the data gets dense exactly when the wall is under the most stress.
A fixed weekly schedule would miss the spikes that matter most. A wall might sit still for days, then shift during a single afternoon of deep excavation right beside it. By tying readings to the construction activities, the survey catches those pivotal moments instead of averaging them away. That responsiveness is what makes the monitoring genuinely useful to the engineer.
Telling Real Movement From Measurement Noise
Every measurement carries a little scatter, so the survey has to separate true motion from ordinary noise. Instrument precision, weather effects, sighting geometry, and small setup differences all nudge the numbers slightly from reading to reading. The crew and the engineer set thresholds that mark where a change stops being noise and starts being real movement. Those limits keep a harmless wobble from triggering a false alarm.
Understanding this difference protects the project both ways. Overreacting to noise wastes money and erodes trust in the data, while dismissing real motion as noise can be dangerous. So the survey reports change against clear, agreed thresholds rather than raw scatter. That honest handling of precision is what lets the team act on the readings with confidence.
Reporting Results Through a Clear Alert Chain
Numbers only help if they reach the right person fast, so the survey follows a set reporting path. Tables, movement vectors, and trend plots show what the wall is doing over time, and defined notification limits say when to sound the alarm. Named contacts and a clear escalation route make sure a concerning reading gets acted on quickly. That structure turns raw data into a decision the team can make in time.
The alert chain earns its value in the tense moments. When a reading crosses a threshold, everyone already knows who gets called and what happens next, so no one loses hours deciding. That preparation can be the difference between a controlled pause and a collapse.
Frequently Asked Questions
Can monitoring prove what caused a wall to move?
No. Monitoring documents the timing, direction, and amount of measured movement, but it doesn’t explain the cause on its own. Pinning down why a wall moved usually takes engineering and geotechnical analysis that reads the survey data alongside the site conditions.
How often should a wall be checked during construction?
The engineer or the risk plan sets the frequency based on the construction activity, the wall’s condition, and how much movement is allowed. Quiet periods may need only occasional readings, while excavation or dewatering right beside the wall often calls for daily or even more frequent checks.
What happens if a monitoring target gets damaged?
The point has to be evaluated and usually replaced, and the loss gets documented clearly. That record keeps later readings from being treated as one continuous series when they aren’t, which protects the accuracy of the trend.
